Flashlight Switch/Push Button Switch/Slide Switch/Micro Switch

Push Button SwitchRATING: 3A 125VAC, 1A 250VAC;3A 250VAC, 6A 250VAC;6A 250VAC, 10A 125VAC;16A 250VAC, 20A 125VAC.MECHANICAL LIFE: 10, 000cyclesINSULATION RESISTANCE: 100MΩ min.DIELECTRIC STRENGTH: AC 1000V(50-60Hz) for 60 secondsSOLDERING TEMP: 260C± 5Function:ON-OFF

Featured Products

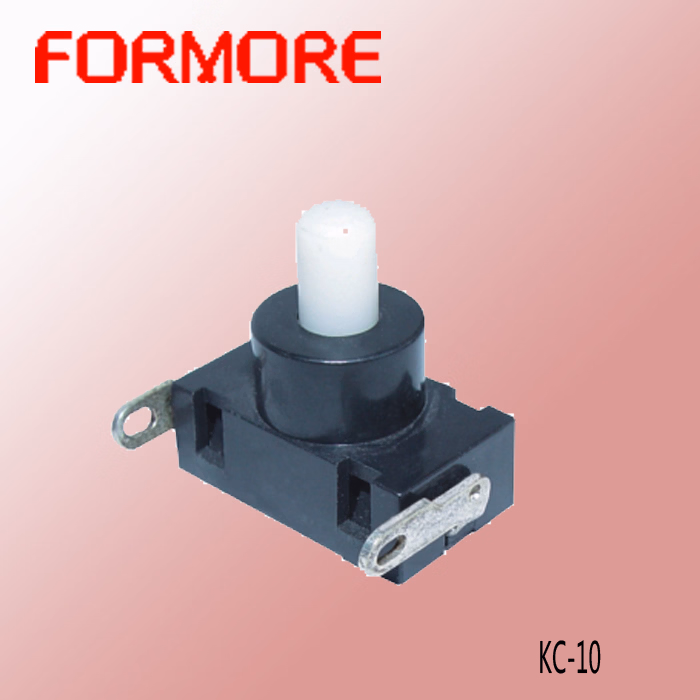

Push Button Switch
RATING: 3A 125VAC, 1A 250VAC;

3A 250VAC, 6A 250VAC;

6A 250VAC, 10A 125VAC;

16A 250VAC, 20A 125VAC.

MECHANICAL LIFE: 10, 000cycles
INSULATION RESISTANCE: 100MΩ min.

DIELECTRIC STRENGTH: AC 1000V(50-60Hz) for 60 seconds
SOLDERING TEMP: 260C± 5

Function:
ON-OFF Latching type
Momentary type
Illuminated type or Non-illuminated typeAdvantage


NO.1
Good quality!
NO.210 years manature!
NO.3Many types of circuit breaker switch we can supply
NO.4High quality, competitive price, great service!
NO.5The best indicator light at the best price!


The Main Technical Parameters


Item
Different types of rocker switches
MterialPA66 /PC
Rating6A 125VAC/3A 250VAC
Single package size18X16X8 CM/500PCS
Contact Resistance≤35MΩ
Insulation Resistance≥500VDC100mΩ
OperatingTemperature-25C~+85C
Ambient Temperature-10ºC~+85 ºC
Dielectric Strength1500VAC,1 Minute
TypeROCKER SWITCH
Elactric life>10000 Cycles
Electrical Life>50000 Cycles
Terminals & Mid pinsCopper with silver plated
Ways And Pins1 Way and 2 Pins
ContactsCopper with compound silver
Terminals & Mid pinsCopper with silver plated


Technical Parameters


Experimental Current
Starting ConditionExperimental TimeExpect Result
1InCold Start1hNot Trip
1.5InFollowed The Experimentt<=1hTrip
2InCold Start(t1)2s≤t≤60s(t2)Trip
6InCold Start(t3)0.1s≤t≤2ss(t4)Trip
10InCold Start(t5)0.02s≤t≤0.5s(t6)Trip


SHIPPING && PAYMENT

Shipping way : Ship worldwide by sea,by air or by express like DHL, UPS, TNT, FEDEX,CHINA POST
Payment way l: Paypal, T/T, Western union, MoneyGram, or other methods.

COMPAY INFORMATION


  Our company specializes in the R & D, design and manufacture of all types of rocker switches, rotary switches, inching switches, push button switches, electronic tool switches and power sockets, which are widely applied to home electrical appliances, car accessories and other electric equipments.

OUR SERVICE

Please kindly inform us which items you are interested, and the best price will be provided you upon receipt of your new enquiry
Any questions about more items, please feel free to contact us.
We are sincerely looking forward to establishing cooperate relationship with you.

Free sample is available!
If you need any parts, please kindly send us your drawing or sample for quotation.
