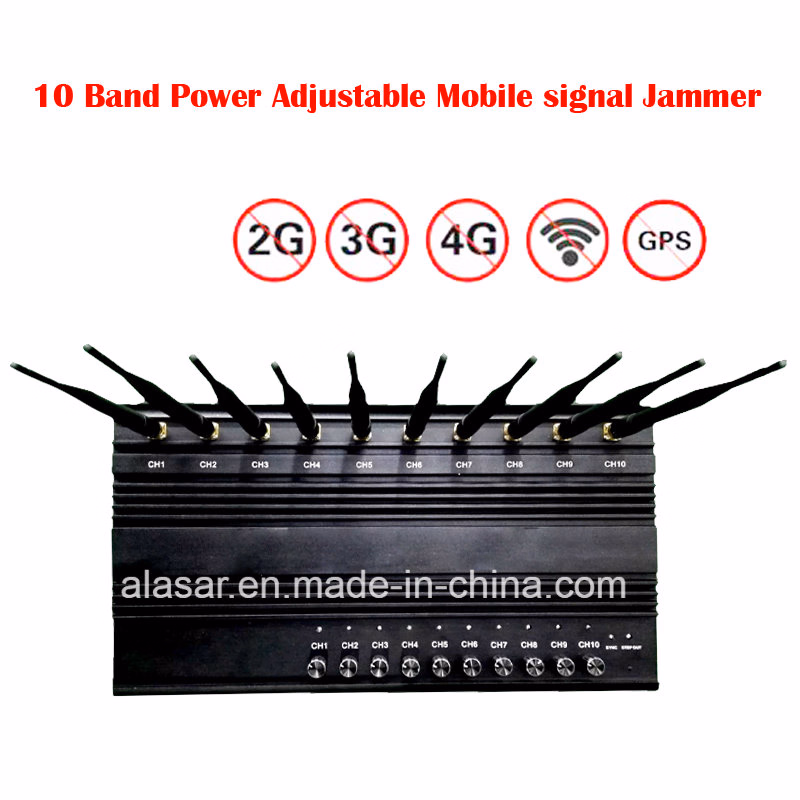

Features:
Each band LED indicator light
Internal Cooling fan to make the jammer work more stably
Provide 360 degree jamming
Output power can be adjustable
Each frequency channel can be controlled separately
Frequency ranges selectable
Adjustable working range
*VSWR Protect high effiency power amplifiers
*Good cooling system with cooling fan inside
*Working non-stopped
*Stable capability
*Could be used in Vehicle directly, With car charger
*Can adjust or turn off any single band without influencing the other bands operation;
Technical Specifications:
Effective shielding CDMA, GSM, SCDMA, DCS1800MHz, PCS1900MHz, PHS, GPS, 2.4GWIFI, 5.8G wifi, 3G WCDMA, 4G LTE,VHF,UHF ect, wireless signal.
Jamming frequency bands ( frequency only as reference):
Jamming Radius: Typical 2-50m according the signal density mobile network or signal strength;
Output Power Adjustable: Can control output power to adjust the jammer range.
Jammer type: Sweep Jamming;
Antenna Type:Omini-Directional;
Power Source: AC adapter (50 to 60Hz/100 to 240V AC -DC12V) and 12V car charger Plug;
Electric Filed (SAR):Compatible with ICNIRP Standards(Human safe);
Operating Temp:-20 to +50ºC;
Storage Temp:-40 to +60ºC;
Dimension(LXWXH): 400×220×60 mm
Net weight: 3.8kg;
Gross Weight: 5.5kg
Car Charger: Available
Applications:
Prisons, Recording Studios, Banks, Contract Tendering Rooms, Churches, Classrooms, Testing Facilities, Security Services, Military Units, Secret Services, News Conference Rooms, Libraries, Museums, Courts, Border Patrol and Drug Enforcement, Customs, etc.
Each band LED indicator light
Internal Cooling fan to make the jammer work more stably
Provide 360 degree jamming
Output power can be adjustable
Each frequency channel can be controlled separately
Frequency ranges selectable
Adjustable working range
*VSWR Protect high effiency power amplifiers
*Good cooling system with cooling fan inside
*Working non-stopped
*Stable capability
*Could be used in Vehicle directly, With car charger
*Can adjust or turn off any single band without influencing the other bands operation;
Technical Specifications:
Effective shielding CDMA, GSM, SCDMA, DCS1800MHz, PCS1900MHz, PHS, GPS, 2.4GWIFI, 5.8G wifi, 3G WCDMA, 4G LTE,VHF,UHF ect, wireless signal.
Jamming frequency bands ( frequency only as reference):
| Channel | Frequency band | RF output Power |
| 1CH | GSM800MHz:851-894MHz; | 33dBm |
| 2CH | GSM900MHz:925-960MHz; | 33dBm |
| 3CH | GSM1800MHz:1805MHz-1880MHz; | 33dBm |
| 4CH | GSM1900MHz:1920-1990MHz; | 33dBm |
| 5CH | 3G2100MHz: 2110-2170MHz; | 33dBm |
| 6CH | Wi-Fi/Bluetooth: 2.4G:2400MHz-2483MHz; | 33dBm |
| 7CH | 4G 700LTE 758-823MHZ | 33dBm |
| 8CH | 4G 2600LTE 2620-2690MHz | 33dBm |
| 9CH | GPS L1 1575.42MHz; | 33dBm |
| 10CH | UHF:435MHz-475MHz; | 33dBm |
| Total RF output Power | 20Watt | |
Jamming Radius: Typical 2-50m according the signal density mobile network or signal strength;
Output Power Adjustable: Can control output power to adjust the jammer range.
Jammer type: Sweep Jamming;
Antenna Type:Omini-Directional;
Power Source: AC adapter (50 to 60Hz/100 to 240V AC -DC12V) and 12V car charger Plug;
Electric Filed (SAR):Compatible with ICNIRP Standards(Human safe);
Operating Temp:-20 to +50ºC;
Storage Temp:-40 to +60ºC;
Dimension(LXWXH): 400×220×60 mm
Net weight: 3.8kg;
Gross Weight: 5.5kg
Car Charger: Available
Applications:
Prisons, Recording Studios, Banks, Contract Tendering Rooms, Churches, Classrooms, Testing Facilities, Security Services, Military Units, Secret Services, News Conference Rooms, Libraries, Museums, Courts, Border Patrol and Drug Enforcement, Customs, etc.
